YPC
Brand:YPC

Mechanical Valve Series

Compact Cylinder (YCQ/YCDQ Series)Coil & DIN Connector

E-Brochures (YMV310 Series) E-Brochures (YMV410 Series) E-Brochures (PMEV Series) E-Brochures (RLV Series) E-Brochures (HLV Series) E-Brochures (FT Series) E-Brochures (KMV Series) E-Brochures (TMV Series)

Request For Quotation

3/2 Actuated Spool Valve (YMV Series)
Type Size Function
YMV310-XX-X-3 (30mm) 1/8” PU : Pushrod
1RP : Two-way Roller Lever
1RB : Two-way Bearing
Roller Lever
2RP: One-way Plastic
2RB : One-way Bearing
YMV410-XX-X-3 (30mm) 1/4” Roller Lever
FP : Flush,Push ​​Button(R)
SL : 2Position Selector(B)
MS : Mushroom 40mm dia
Spring Return(R)
MT : Mushroom 40mm dia
Turm to unlock(R)
5/2 Pushrod & Selector (PMEV Series)
Type Size Function
PMEV110-XX-X-2 (25mm) M.5 FP : Flush,Push ​​Button(R)
PMEV210-XX-X-2 (25mm) 1/8” SL : 2Position Selector(B)
PMEV210-XX-X-3 (30mm) 1/8” MS : Mushroom 40mm dia
PMEV410-XX-X-2 (25mm 1/4” Spring Return(R)
PMEV410-XX-X-3 (30mm) 1/4” MT : Mushroom 40mm dia
Turm to unlock(R)
5/2, 3/2 Roller Valve (RLV Series)
Type Size Function
RLV110-1RP M.5×0.8 Two-way Plastic Roller Lever
RLV210-1RP 1/8” Two-way Plastic Roller Lever
RLV210-2RP 1/8” One-way Plastic Roller Lever
RLV260-1RP 1/8” Two-way Plastic Roller Lever
RLV410-1RP 1/4” Two-way Plastic Roller Lever
RLV410-2RP 1/4” One-way Plastic Roller Lever
RLV460-1RP 1/4” Two-way Plastic Roller Lever
5/2, 5/3, 3/2 Hand Valve (HLV Series)
Type Size Function
HLV310-S 1/8” 5/2 SINGLE SPRING RETURN
HLV410-S 1/4”
HLV510-S 3/8”
HLV610-S 1/2”
HLV320-D 1/8” 5/2 DOUBLE DETENTED
HLV420-D 1/4”
HLV520-D 3/8”
HLV620-D 1/2”
HLV330-S 1/8” 5/3 CLOSED CENTER SPRING RETURN
HLV430-S 1/4”
HLV530-S 3/8”
HLV630-S 1/2”
HLV330-D 1/8” 5/3 CLOSED CENTER DOUBLE DETENTED
HLV430-D 1/4”
HLV530-D 3/8”
HLV630-D 1/2”
HLV440-S 1/4” 5/3 OPEN CENTER SPRING RETURN
HLV640-S 1/2”
HLV440-D 1/4” 5/3 OPEN CENTER DOUBLE DETENTED
HLV460-S 1/4” 3/2 NO+NC SPRING RETURN
HLV460-D 1/4” 3/2 NO+NC DOUBLE DETENTED

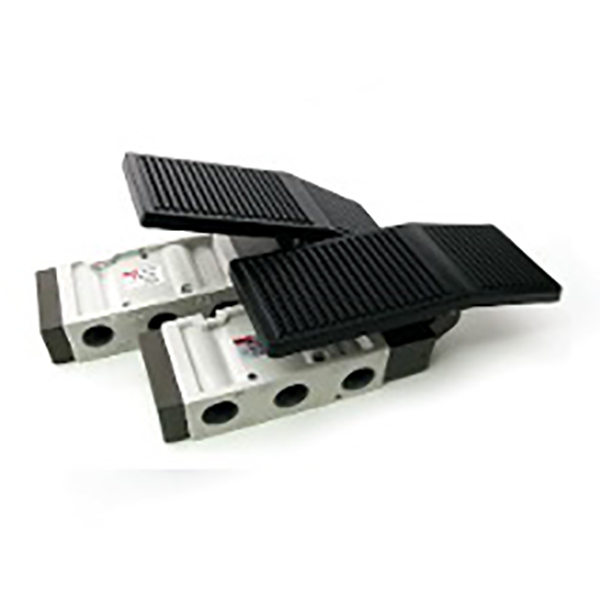

5/2, 5/3 Foot Valve (FT Series)
Type Size Function
FT410-S 1/4” 5/2 SINGLE SPRING RETURN
FT510-S 3/8”
FT610-S 1/2”
FT610-D 1/2” 5/2 DOUBLE DETENTED
FT620-D 1/2” 5/2 DOUBLE DETENTED
FT630-S 1/2” 5/3 CLOSED CENTER SPRING RETURN
FT630-D 1/2” 5/3 CLOSED CENTER DOUBLE DETENTED
FT640-D 1/2” 5/3 OPEN CENTER DOUBLE DETENTED
5/2, 3/2 Knob Push/Pull Manually (KMV Series)
Type Size Function
KMV310-XX 1/8” 5/2 SINGLE
KMV410-XX 1/4”
KMV360-XX 1/8” 3/2 NORMALLY CLOSED
KMV460-XX 1/4”

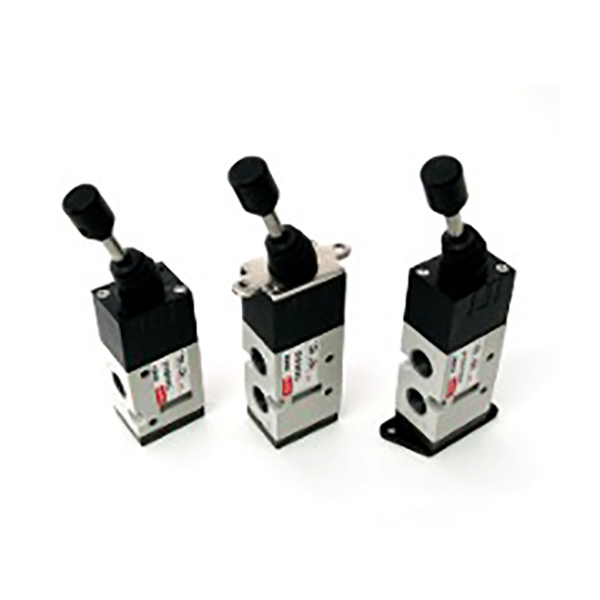

5/2, 3/2 Toggle Lever Operated (TMV Series)
Type Size Function
TMV210-XX 1/8” 5/2 SINGLE
TMV410-XX 1/4”
TMV260-XX 1/8” 3/2 NORMALLY CLOSED
TMV460-XX 1/4”
TMV270-XX 1/8” 3/2 NORMALLY OPEN
TMV470-XX 1/4”

Additional information

Manufacturer

YPC

Brand

YPC
